Industrial Air Curtain Centrifugal Flow With Metal Casing Design Use For Tall Gate / Door / Factories , Shopping Mall
What is Industrial Air Curtain ?
Industrial normally use centrifugal flow system to have larger air flow and stronger air pressure so that can working at 5m to 8m height place mounted .
Basing on the stronger air speed and air flow, Industrial Air Curtain often applicable in factories , shopping mall , warehouse and such sites where have tall gate .
USING OCCASIONS -- Werehouse logistics
Features and Functions
Industrial Air Curtains - model explanation

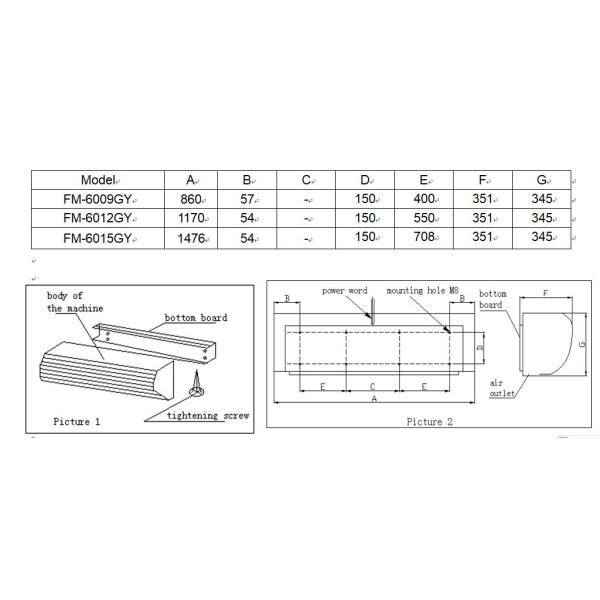

The Dimensions for Installation
Specifications for your reference
110V/60Hz, 110V/50Hz, 220V/60Hz are all available
| Model | Voltage /Frequency | Input Power (W) | Air Velocity (m/s) | Air Volume (m³/h)/CFM | Noise (dB) | Fuselage Size | Mounting Height |
| ( V / HZ) | H | H | H | H | (mm) | (m) | |
| FM-6009GY | 220-240/50 | 800 | 21 | 3500 | ≤63 | 914x345x351 | 6 - 7 |
| FM-6012GY | 220-240/50 | 1200 | 21 | 4650 | ≤65 | 1218x345x351 | 6 - 7 |
| FM-6015GY | 220-240/50 | 1600 | 21 | 5700 | ≤66 | 1523x345x351 | 6 - 7 |
| FM-6009GY | 380 /50 | 1100 | 24 | 3750 | ≤65 | 988 x 410 x 417 | 6 - 8 |
| FM-6012GY | 380 /50 | 1600 | 24 | 5000 | ≤66 | 1292 x 410 x 417 | 6 - 8 |
| FM-6015GY | 380 /50 | 2200 | 24 | 6250 | ≤68 | 1597 x 410 x 417 | 6 - 8 |
|
|
